KTA | Non-Linear Crystal

Request quote

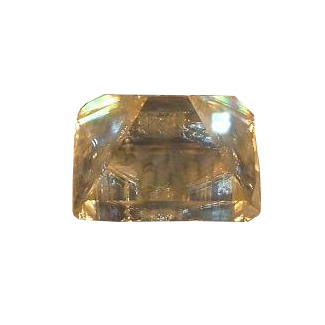

KTA | Non-Linear Crystal is an excellent nonlinear optical crystal for OPO applications.

Category:

Description

KTA | Non-Linear Crystal is an excellent nonlinear optical crystal for OPO applications. OPO devices based on KTA are reliable solid-state sources of tunable laser radiation exhibiting energy conversion efficiencies above 50%. In addition, KTA has a very high damage threshold and lower absorption in the 3-4 µm spectrum range than KTP.



ADVANTAGES

  • Large nonlinear optical and electro-optical coefficient
  • Wide angular bandwidth and small walk-off angle
  • Temperature and spectral bandwidth
  • Low dielectric constant, loss tangent, and ionic conductivities
  • High damage threshold
  • Highly resistant to high-intensity laser radiation



MAIN APPLICATIONS

  • An excellent NLO crystal developed mainly for Optical Parametric Oscillation
  • Frequency doubling ([email protected]~3789nm)
  • Sum and difference frequency generation
  • Electro-optical Q-switch and modulation for optical waveguides
